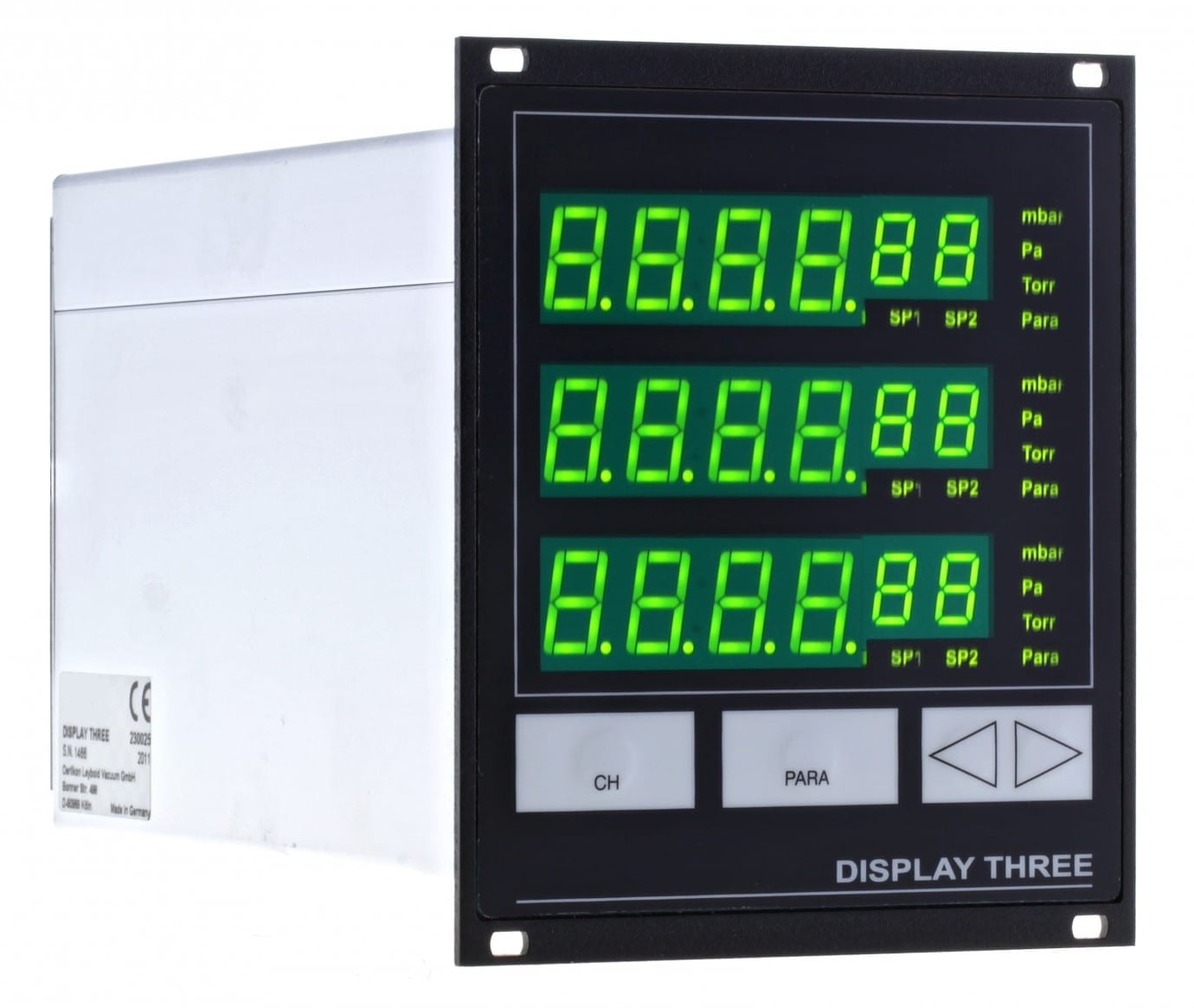

DISPLAY THREE

DISPLAY THREE

Cost-effective, operating and display units for the transmitters from the THERMOVAC and PENNINGVAC series. All channels are displayed simultaneously.

Advantages to the User

■ Power supply voltage for the transmitters
■ Display range from 1 x 10^-9 to 2000 mbar (0.75 x 10-9 to 1500 Torr)
■ Readout selectable between mbar, Torr or Pascal
■ Adjustable switching thresholds with variable hysteresis, floating changeover contacts and visual indication of the switching status in the display
■ Option of entering gas correction factors
■ Separate chart recorder outputs 0 - 10 V for each measurement channel

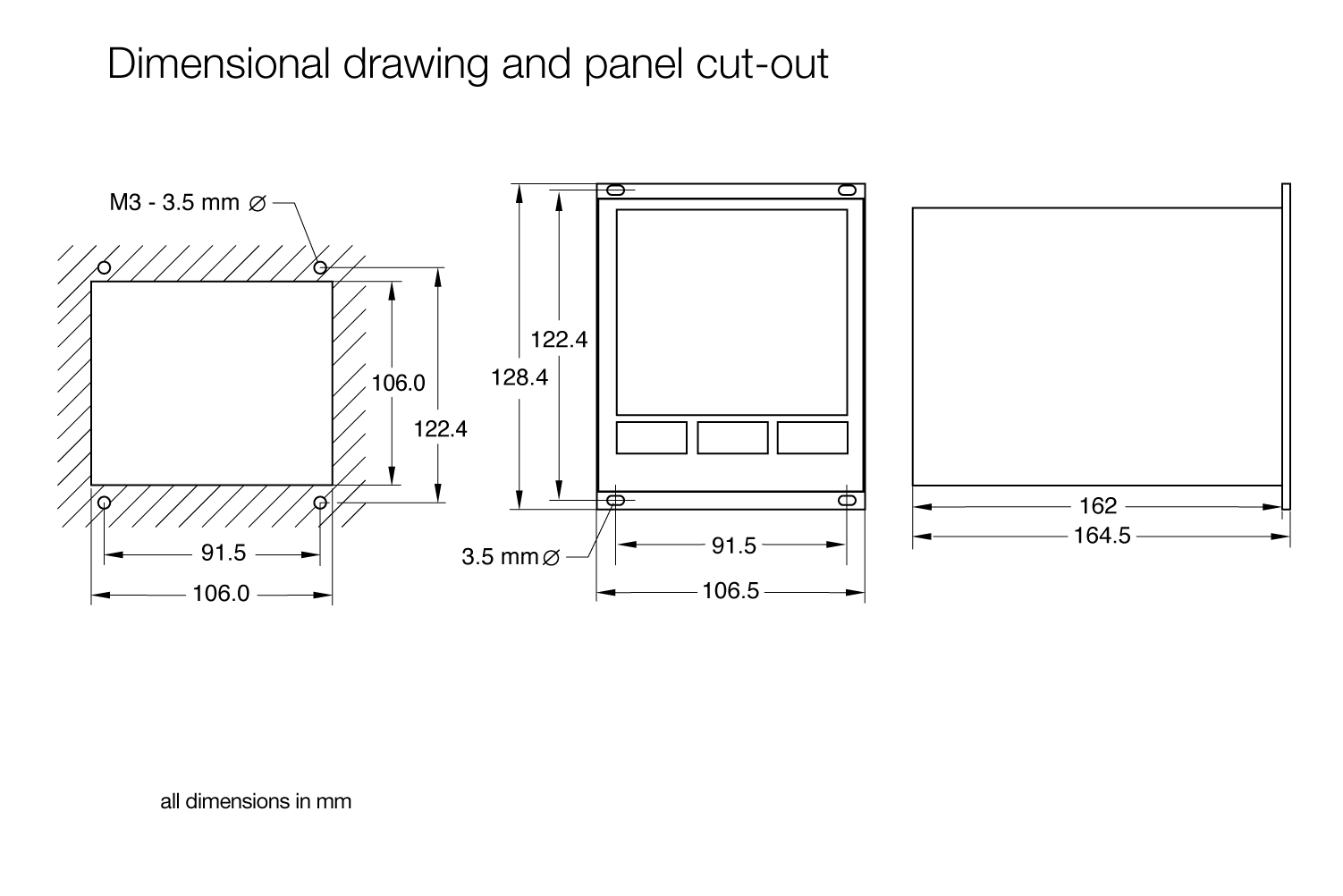

■ Compact bench top enclosure (1/4 19", 3 HU)
■ For fitting into 19", 3 HU racks

Connectable Sensors

THERMOVAC
■ TTR 211 *)
■ TTR 216 S *)
■ TTR 90 *)
■ TTR 91 / TTR 91 N
■ TTR 96 S / TTR 96 N S
■ TTR 100 *)
■ TTR 100 S *)
■ TTR 101 / TTR 101 N
■ TTR 101 S / TTR 101 N S
■ TTR 911 / TTR 911 N
■ TTR 916 / TTR 916 N

PENNINGVAC
■ PTR 90 / PTR 90 N
■ PTR 225 / PTR 225 N
■ PTR 225 S / PTR 225 N S
■ PTR 237 / PTR 237 N

Linear pressure sensor
■ DU 200
■ DU 201
■ DU 2000
■ DU 2001
■ DU 2001 rel.

*) Connecting of older sensors possible
